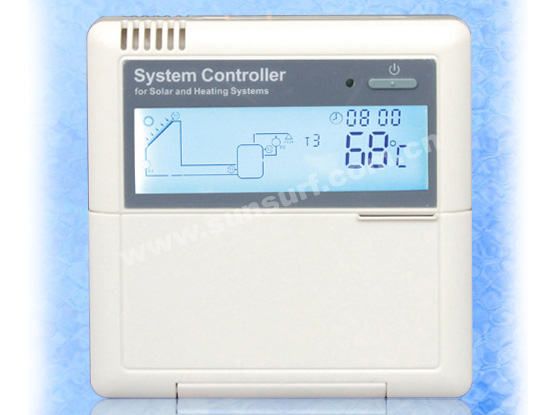

Name:Separated under-pressure controller instrumentation
Number:SC-868C1 Controller
Function:
Time display: 24 hours display time clock.
Temperature display: display T1、T2、T3、T4.
Temperature difference controlled circulation on/off.
Temperature controlled auxiliary heating during three time section.
Time and Temperature controlled hot water circulation pump.
Frost protection of tank at high temperature:
(1) Protection of tank at high temperature.
(2) "℃/F" conversion display Memory protection when power is failure.
Technique data:
Dimensions:205mm×15mm×45mm
Display dimension:120mm×120mm×18mm
Use power supply:AC220V±10%
Self power consumption:<3W
Measuring accuracy of temperature:±2℃
Temperature range of measurement:0-120℃
Suitable power of pump:<600W
Power of auxiliary electrical booster:≤2000W Water protection grade:IP41
