SC-S01(Separate Pressurized Solar Water Heater)SC-S01(Separate Pressurized Solar Water Heater)
Products Intro:

Products Intro:

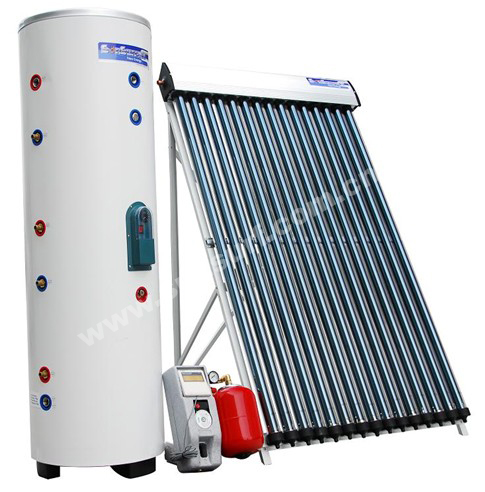

The separate pressurized solar water heater compose of solar collector, storage tank, controller, working station and installation parts.
Working principle:
1) When the discrepant temperature of the solar collector and water tank reaches the set value, the controller shall start the circulation pump automatically
2) The circulation pump makes heat-conducting liquid circulate automatically
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank
4) In case the temperature of the water tank does not reach Tmax, then start the auxiliary heating device
5) If discrepant temperature of the collector and the water tank does not reach the set value, the circulation pump shall be shut automatically

Feature:
1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7) Multifunction: Bathing, washing, domestic heating
8) Workable at anytime and enjoyableOuter


Features of separate pressurized system:
* Strong hydraulic pressure makes your bathe more comfortable
* Modularized collector, arbitrary combination
* Intelligent controlling and multiple functions
* Arbitrary combination with structure of your beautiful constructions
* Separate installation conveniently
* Working with assistant resource
* Full set of original equipment, the life time will be much longer to ensure better using
* Material
a) Inner water tank: imported SUS304 stainless steel
b) Outer water tank: galvanized steel alloy
c) Bracket: aluminium alloy

* Solar vacuum tube with heat pipe
a) Size: 58 x 1,800mm
b) Qty: 15 / 20 / 25 / 30pcs

* Temperature insulation layer
50mm thickness imported polyurethane, machinery overall for keeping same
temperature and high pressure foam

* Capacity
150 / 200 / 250 / 300 liters
* Max. pressure bearing: 0.6MPa

* 3 years' international responsibility for free repairing or exchange due to original quality problems
